PRL Motorsports
PRL Motorsports 2017+ Honda Civic Type-R High Volume Intake System (PRL-HCR-INT-HVI)
PRL Motorsports 2017+ Honda Civic Type-R High Volume Intake System (PRL-HCR-INT-HVI)
Regular price
$419.99 USD
Regular price
$419.99 USD
Sale price
$419.99 USD
Unit price
/
per
Couldn't load pickup availability
**International models may be required to use a 6-8mm cap on the evap fitting. In particular European/Australia models.
Fitment Notes:
- FITS ALL 2017+ HONDA CIVIC TYPE-R MODELS INCLUDING 6MT, CVT, RHD, INTERNATIONAL MODELS, ETC
- FITS FACTORY TURBOCHARGER INLET PIPE OR PRL MOTORSPORTS INLET PIPE
Please Read Before Ordering:
- NO TUNE REQUIRED FOR STREET MAF HOUSING
- RACE MAF TUNE / MAF SCALING CALIBRATION REQUIRED FOR RACE MAF OPTION
Our FK8 Civic Type-R High Volume Intake system utilizes a 6" cone filter and billet 2-piece MAF housing with velocity stack(s) to allow maximum airflow while delivering proper fuel trims. The HDPE rotomolded air box utilizes the factory air duct and seal for optimal airflow and heatsoak reduction. Custom molded 4-ply silicone allows for all components to be safely attached without obstructing airflow.
Kit includes:
- (1) 4-Ply Silicone Intake Hose
- (1) Injection Molded Evap Fitting

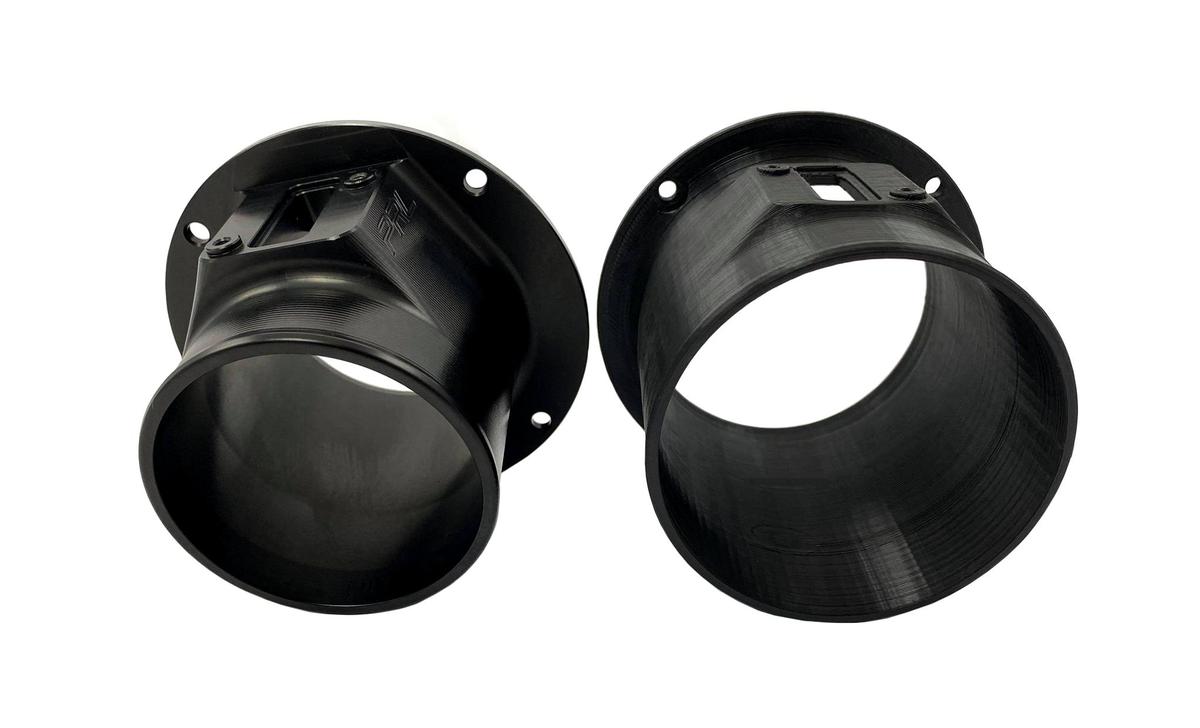

- (1) Two-Piece MAF Housing
- (1) Rotomold Air Box
- (1) 6" Air Filter
- (4) Stainless Steel Breeze Lined Clamps
- Stainless hardware
- Wire Loom
Initial Testing (Street MAF HOUSING) Results:
All testing was performed on the same day with a rather mild 55 degree Fahrenheit day and moderate humidity. We started all single dyno pulls at 174 degrees, while continuous (back-to-back) dyno pulls start at 174 degrees and end around 197 degrees.
For our first comparison we tested the factory intake system on KTuner's stock equivalent ECU map versus our High Volume Intake System on KTuner's stock equivalent ECU map for an apples-to-apples comparison. Run 2 was the coolest (174 degree starting temp) for both setups. We saw an 11 - 12 horsepower peak gain and 32 horsepower gain throughout the mid-range over the factory intake system.
For our first comparison we tested the factory intake system on KTuner's stock equivalent ECU map versus our High Volume Intake System on KTuner's stock equivalent ECU map for an apples-to-apples comparison. Run 2 was the coolest (174 degree starting temp) for both setups. We saw an 11 - 12 horsepower peak gain and 32 horsepower gain throughout the mid-range over the factory intake system.
