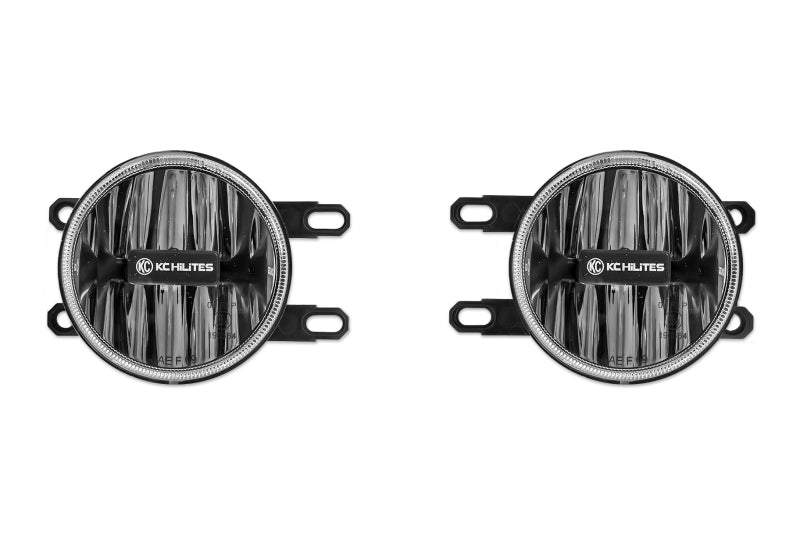

KC HiLiTES 12-18 Toyota Tacoma Gravity G4 LED Light Clear Fog Beam (Pair Pack System) (kcl500)

KC's Fog Light Bracket/LED upgrade allows mounting of KC Gravity® G4 LED fog lights to Tacoma's OEM fog lamp locations. Brackets give your G4 fog lights a clean, factory-installed look without having to drill or cut your bumper.

GRAVITY® EXTREME OUTPUT AND EFFICIENCY

The 4" Gravity® LED Fog Lights are powered by KC's patented Gravity® Reflective Diode(GRD) and optical reflectors to deliver an incredible 150 lx @ 10m using only .74 Amps per light. Our GRD system aims the LEDs into the precision-designed reflectors to capture all the light and project it forward.

STREET LEGAL FOG BEAM PATTERN

Fog Beam- Provides a low, wide-angle light pattern that increases visibility in conditions like dust, fog, snow, and rain.

STRENGTH & DURABILITY

Using high-quality electroplated aluminum housing and Polycarbonate lens in a self-contained housing, impermeable to dust and moisture.

APPLICATIONS

• Toyota Tacoma (2012, 2013, 2014, 2015, 2016, 2017, 2018)

FEATURES

• 2 x 10W 4" Gravity® LED Fog Lights
• Lightweight Magnesium Housing for Maximum Heat Dissipation
• UV Treated Shatter Resistant Polycarbonate Lens
• Street Legal Fog Beam Pattern

LIGHT PERFORMANCE (PER LIGHT)

• Raw Lumens: 866 lm
• Compliance: SAE J583 & ECE-R19
• Lux @ 10 Meters: 150 lx
• Candela: 150,000 cd
• Beam Distance (Meters): 245m

SPECIFICATIONS (PER LIGHT)

• Wattage: 10W
• LED Source: CREE XP-G R4Color: 5000K
• Amp Draw: .74A
• Voltage: 9V-32V
• IP Rating: IP68
• Dimensions: W - 3.94" x H - 3.94" x D - 2.97"

 PARTS INCLUDED

• (2) 10W 4" Gravity® G4 LED Fog lights and Brackets for 12-22 Toyota Tacoma
• H11 Wiring Harness w/ 2-Pin weather-proof connectors
