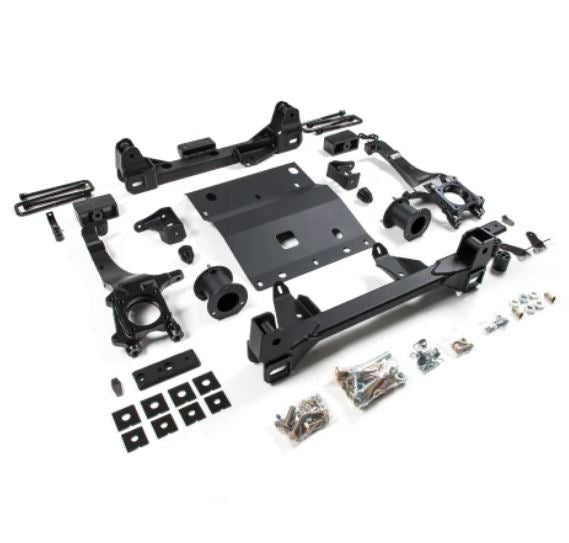

Zone Offroad 2016-2020 Toyota Tacoma 4wd 4/3 Lift System (zorZONT8N)

Take your Tacoma to new heights with this 4" lift kit from Zone Offroad. Kits include everything needed from high-strength cross members and steering knuckles to strut spacers and rear block kit to level out the stance. Get the look, performance, and capability your truck deserves with clearance for up to 33" tires.

NOTES

• SPECIAL ORDER
• 33x12.50 tires require trimming.
• Requires frame bracket modification.
• Stock wheels cannot be reinstalled. 18" or larger wheels must be used.
• The system will work on RWD PreRunner models.
• Will not work on TRD Pro Models.

APPLICATIONS

• Toyota Tacoma [4wd] (2016, 2017, 2018, 2019, 2020)

FEATURES

• High strength cross members to correct lower control arm positioning
• Ductile iron steering knuckles to correct steering geometry and maintain ESC system compatibility
• Top-mounted strut spacers to provide lift and install easily
• A full-width belly skid plate offers improved offroad protection
• Rear lift blocks and u-bolts to lift and level the stance
• Bump stop, sway bar, and brake line relocation brackets to correct operating angles

SPECIFICATIONS

• Front Lift Height 4"
• Rear Lift Height 3"
• Front Lift Method Strut Spacer & Cross-Member
• Rear Lift Method Cast Blocks
• Lift Type Lift Kit
• Wheel Size 18 x 9
• Back Spacing 4.5"
• Max Tire Size 33 x 12.5
• Wheel Size 2 20 x 9
• Back Spacing 2 4.5"
• Max Tire Size 2 33 x 12.5
• Wheel Size 3 22 x 9
• Back Spacing 3 4.5"
• Max Tire Size 3 33 x 12.5
• Is Adjustable No
• Finish Powdercoat
• Metal Cutting Required No
• Accommodates Factory Wheels No
• Welding Required Yes
