HKS 93-02 Supra JZA80 Hipermax IV GT Coilover Kit

If you're looking to improve your A80 Supra handling without having to figure out ride height and get it cornered balanced, then these HKS coilovers are the perfect kit for MK4 Supra!  These come pre cornered balanced from HKS to give your Supra the perfect handling that it needs.   These are fully adjustable if you want to do your own adjustment as well.

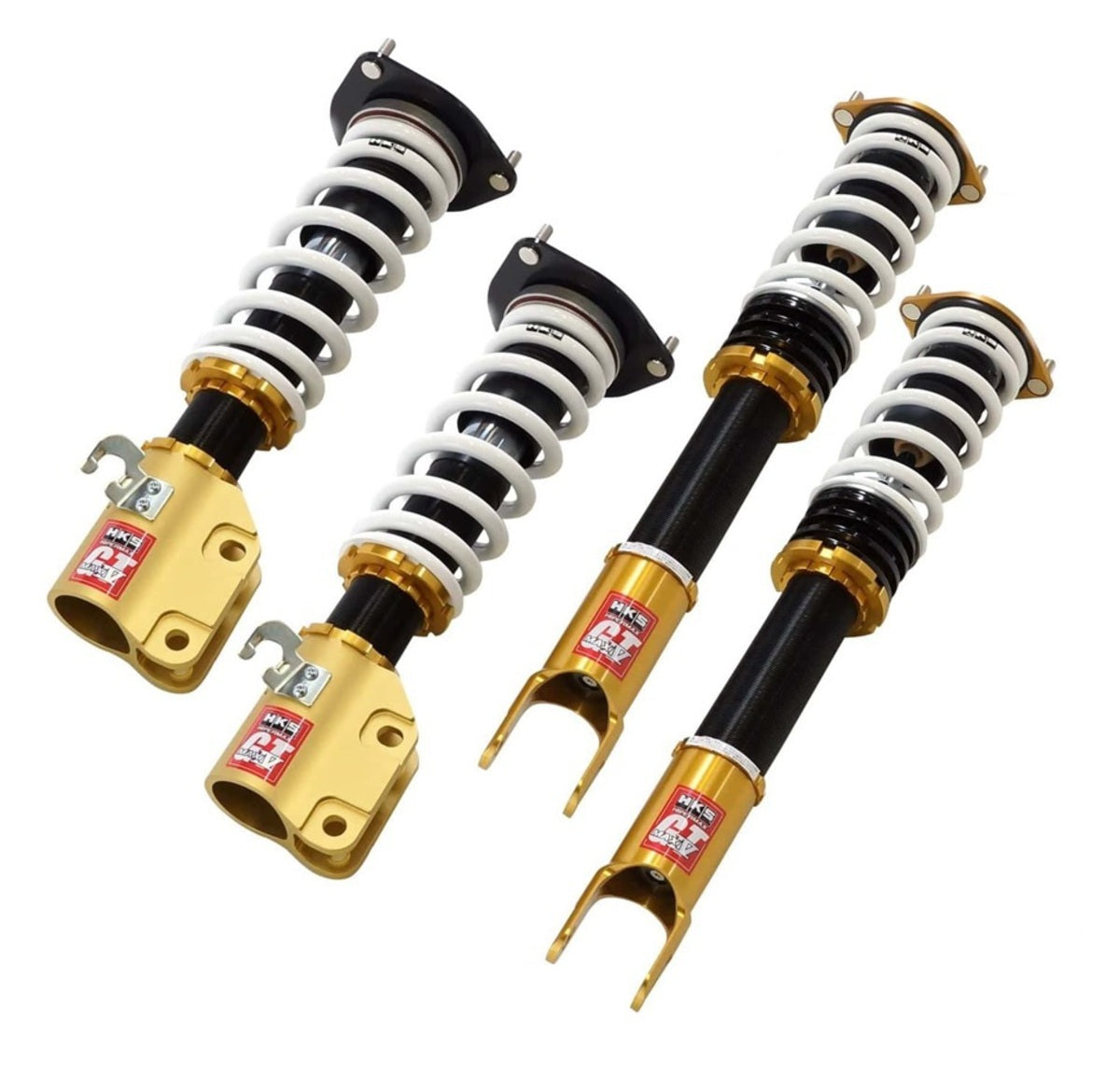

NOTE: IMAGES USED ARE GENERIC HIPERMAX GT COILOVERS.

APPLICATION:

• A80 TOYOTA SUPRA (1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000)

RIDE HEIGHT (mm)

		Factory *2	Test data	Adjustable range High - Low *3	Drivable range High - Low *4
FRONT	Ride height *1	650	←	692 ～ 598	692 ～ 607
	Against stock	-42	←	0 ～ -94	0 ～ -85
REAR	Ride height *1	645	←	668 ～　563	668 ～　602
	Against stock	-23	←	0 ～ -105	0 ～ -66

KIT INFORMATION

Spring of Full Kit

F R Spring rate N/mm(kgf/mm) 137 ( 14 ) 79 ( 8 ) Free height (mm) 200 200 Spring type Straight Straight Recommended range to change spring rate N/mm(kgf/mm) ±20 ( 2 ) ±20 ( 2 )

Specification of damper

F R Damping force (Rebound/Damping)N* 2350 / 400 1000 / 200 Default position of dial 15 15 Remaining damper stroke (Rebound/Damping)mm 41 / 49 80 / 56

* The value of the damping force is at piston speed of 0.1m/sec.



Setting data

	F				R
	Default	Test	Drivable limit High *	Drivable limit Low *	Default	Test	Drivable limit High *	Drivable limit Low *
Length of case (mm)	373	←	397	368	385	←	408	354
Spring Set length(mm)	221	←	221	240	269	←	269	271
Length to ride hight adjuster (mm)	29	←	53	5	33	←	56	0
Lever ratio	1.78				1.31

* Refer to the above explanation *3 of ride height information for drivable high and low limitations.
