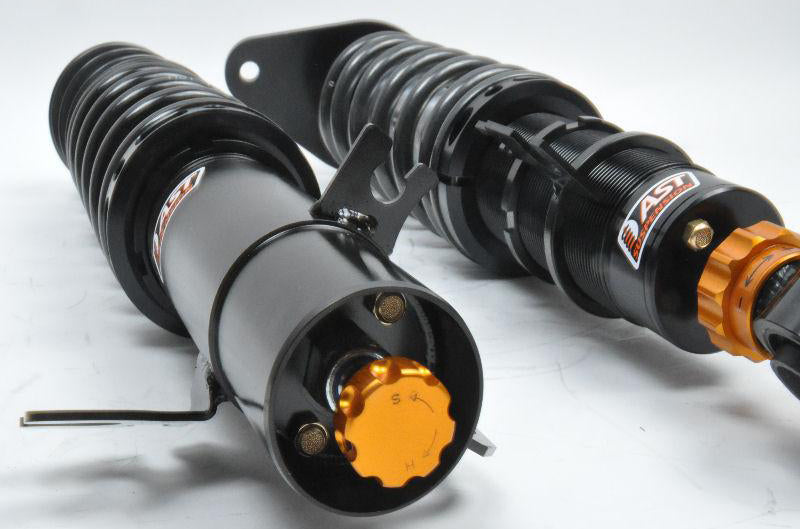

AST 2017+ Toyota 86 / 2013+ Subaru BRZ / 13-16 Scion FR-S / AST 5100 Series Coilovers (astACU-T2401S)

Taking the knowledge and experience learned with the 4000 Series of dampers, AST is now building the new AST 5100 Series Coilovers dampers. One key design feature of the AST 5100 Series Coilovers is their inverted strut design, which makes for a very stiff strut assembly, giving better suspension geometry under heavy lateral and braking loads seen in a road course environment.

Please Note:

• Pictures are used for marketing purposes only, actual product may vary.


Applications

• Toyota 86 (2017, 2018, 2019, 2020, 2021)
• Subaru BRZ (2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021)
• Scion FR-S (2013, 2014, 2015, 2016)

Features

• Front Struts are Steel
• Rear Struts are Aluminum
• High End, Track Ready Suspension that is Totally Streetable
• Rebound Adjustable "Singles" without Reservoir
• 44.5mm Diameter Shaft Struts, Inverted
• New Low Friction Seal
• Rubber Bushings for "Eye" Shock Mounts
• Optional Spherical Lower "Eye" Shock Mounts
• Optional Spherical Upper Shock Mount Assemblies
• Optional DLC Coated Shafts
• Optional DDP Piston (Double Digressive)
